Short introduction

The EcoFlow STREAM 5000 expansion battery is designed for homes where the basic 5kWh storage capacity is not enough. Many households generate more solar power during the day than they use directly. Without battery storage, this surplus is exported to the grid. With additional storage capacity, a larger share of that solar power can be kept for later use.

This expansion module adds 5,024Wh of battery capacity to a compatible EcoFlow STREAM system. In combination with the EcoFlow STREAM AC 5000, it creates a more powerful home battery system that can store more energy for evening use, night-time use, dynamic tariffs or selected backup devices.

The module is plug-and-play expandable within the EcoFlow STREAM ecosystem. Thanks to its stackable design, the installation remains clean and compact, while the system can grow from 5kWh to 10kWh or 15kWh per base set.

Key benefits of the EcoFlow STREAM 5000 expansion battery

• Adds 5,024Wh of extra storage capacity to a compatible STREAM system.
• Ideal as an expansion for the EcoFlow STREAM AC 5000 home battery.
• Expands a 5kWh base set to approximately 10kWh storage capacity.
• With two expansion batteries, expandable up to 15kWh per base set.
• Part of the EcoFlow STREAM ecosystem with modular system design.
• LiFePO4 / LFP battery technology for stable and durable energy storage.
• Stated service life of up to 10,000 charge cycles.
• Maximum charge and discharge power of 1800W.
• Nominal battery voltage of 50V.

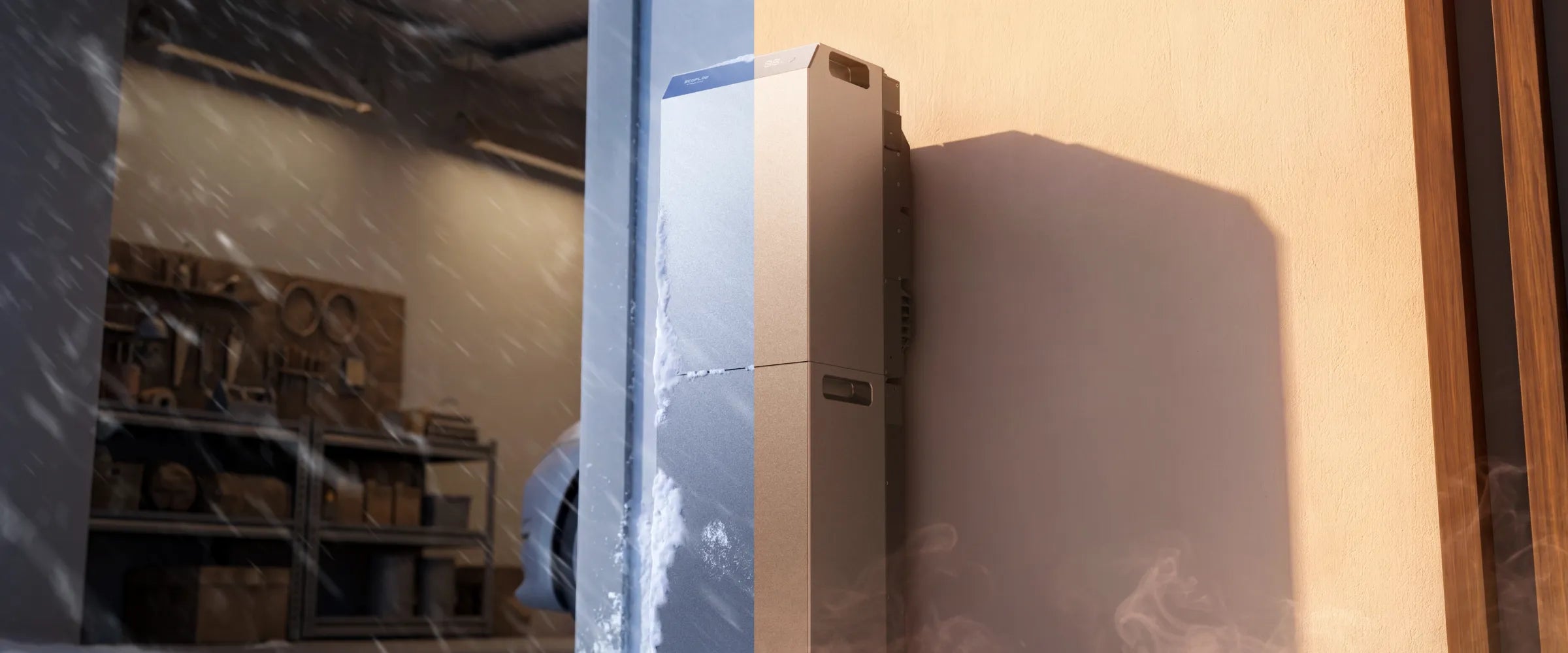

• IP65 protection for robust placement according to installation conditions.
• Operating temperature from -20°C to 55°C.
• Compact stackable module with wall bracket and interlock brackets included.
• 10-year warranty according to EcoFlow product information.

Detailed product explanation

The EcoFlow STREAM 5000 expansion battery is not a standalone inverter or independent plug-in home battery. It is a battery module that is added to an existing STREAM configuration. The module provides extra storage capacity, allowing the system to retain more energy and use it later.

This expansion battery is especially interesting in combination with the EcoFlow STREAM AC 5000. The STREAM AC 5000 acts as the main unit with AC coupling, smart control and connection to the home. The expansion battery is stacked or connected to increase battery capacity. This makes the system suitable for households that need more than 5kWh of storage.

An additional 5kWh of storage can make a significant practical difference. Think of households that export a lot of solar power during the day but consume electricity in the evening for cooking, washing, drying, lighting, refrigerators, freezers, home office equipment or heat-pump related peaks. By increasing available storage capacity, the system can supply battery power for longer.

The expansion battery uses LiFePO4 technology. This battery chemistry is popular for stationary energy storage because of its stability, long service life and suitability for daily use. EcoFlow specifies up to 10,000 charge cycles, a 10-year warranty and a design intended for long-term use in a home energy system.

How does the EcoFlow STREAM 5000 expansion battery work?

Which applications is this expansion module suitable for?

The STREAM 5000 expansion battery is suitable when the storage capacity of an existing STREAM AC 5000 configuration becomes too limited. This can happen with larger PV installations, higher evening consumption, dynamic tariffs or a household that wants to use more energy locally instead of exporting it.

• Expanding the EcoFlow STREAM AC 5000 from 5kWh to 10kWh.
• Expansion to 15kWh with two expansion batteries per base set.
• Households with high solar surplus during the day.
• Homes with high evening or night-time consumption.
• Users who want to respond more effectively to dynamic energy prices.
• Situations where grid export becomes less attractive.
• Customers who want to expand their plug-in home battery modularly.
• Homes where longer backup duration for connected devices is desired.
• Households that want to invest in energy storage step by step.

Who is the EcoFlow STREAM 5000 expansion battery suitable for?

This expansion module is especially suitable for users who have chosen the EcoFlow STREAM ecosystem and need more storage capacity than the base unit provides. It is not a standalone product for users without a STREAM main unit, but a targeted expansion for an existing or new STREAM AC 5000 system.

• Customers with an EcoFlow STREAM AC 5000 base set.
• Households that notice 5kWh storage fills up or runs out too quickly.
• Users with solar panels and high evening consumption.
• Customers who want to expand later without buying everything at once.
• Homes where more storage is desired but a large fixed hybrid system is not necessary.
• Users who want more flexibility with dynamic tariffs.
• Customers who want to bridge power outages for selected devices for longer.
• Households looking for a scalable plug-in battery system.

Key technical features

Compatibility and expandability

The EcoFlow STREAM 5000 expansion battery is intended to work with an existing EcoFlow STREAM storage system. With the STREAM AC 5000, one expansion battery can increase capacity from 5,024Wh to approximately 10kWh. With two expansion batteries per base set, the system can be expanded up to 15kWh.

EcoFlow also states that multiple STREAM AC 5000 sets can be combined into larger storage configurations. In practice, larger systems always require proper assessment of the electrical connection, phase distribution, group load, smart meter, firmware and application.

More storage for self-consumption and dynamic tariffs

A home battery with too little capacity is often full quickly during sunny hours and empty quickly in the evening. By expanding the STREAM AC 5000 with a 5kWh expansion battery, the system becomes more useful for households with larger solar panel installations or higher evening consumption.

• More storage space for daytime solar surplus.
• More available energy for evening and night-time use.
• Less direct grid export when the battery is controlled intelligently.
• Interesting as net metering is reduced and feed-in compensation drops.
• Extra flexibility with dynamic energy tariffs.
• Longer backup duration for devices powered through the main unit.
• Better use of an existing PV installation.

What is in the box?

EcoFlow lists a complete delivery scope for the STREAM expansion battery 5000, including the battery module and mounting hardware for a safe stacking and mounting setup. The exact delivery contents may vary per bundle or revision, but the official product page lists the following parts.

• EcoFlow STREAM expansion battery 5000 × 1.
• Interlock bracket × 2.
• M4×12 screw × 8.
• Wall-mounting bracket × 2.
• Wall plug × 2.
• ST5.5×32 screw × 2.
• Installation manual × 1.
• Warranty information × 1.
• Optional extra cables, smart meter or main unit depending on the chosen bundle.

Why choose Off Grid Supply?

An expansion battery may seem simple, but the right configuration depends on your base unit, solar panels, consumption profile, smart meter, phase distribution and desired backup function. Off Grid Supply helps determine whether expansion to 10kWh or 15kWh makes sense and how the system can be built safely and logically.

• Specialist in home batteries, plug-in batteries and backup power solutions.
• Advice on EcoFlow STREAM AC 5000 and STREAM expansion batteries.
• Comparison with Marstek, Anker SOLIX, Zendure, Hyxi and fixed hybrid systems.
• Assessment of storage requirement: 5kWh, 10kWh or 15kWh.
• Advice on smart meters, P1, Shelly, HomeWizard and CT solutions.
• Explanation of self-consumption, dynamic tariffs, peak shaving and net metering.
• Practical advice on safe placement, expansion and backup use.

Frequently asked questions about the EcoFlow STREAM 5000 expansion battery

Expand your EcoFlow STREAM AC 5000 to 10kWh or 15kWh?

With the EcoFlow STREAM 5000 expansion battery, you add 5,024Wh of extra storage capacity to your STREAM system. This allows you to use more of your own solar power, reduce grid export and prepare your plug-in home battery for higher daily energy consumption.

Important note: capacity, power, compatibility, expansion, backup duration and smart operation depend on the chosen EcoFlow STREAM configuration, main unit, firmware, connection, smart meter, electrical installation and consumption profile. This expansion battery is intended as a module within a compatible STREAM system and not as a fully standalone home battery.
