Zendure Slimme Meter P1
€99.00
Discover the Zendure Smart Meter P1: a plug-and-play P1 reader for real-time insight into energy consumption and feed-in. Suitable for Zendure SolarFlow systems, smart energy control, app monitoring, and Home Assistant.
Delivery conditions - Ordered today, delivered within 1-2 days.
Payment terms - Secure payments with Mollie. Easy. Reliable. Safe.
Return conditions -14 days reflection period.
Smart energy management for Zendure systems
Zendure Smart Meter P1
The Zendure Smart Meter P1 is a compact P1 reader with bridge that makes your smart meter’s energy consumption and feed-in data visible in real time within the Zendure ecosystem. This accessory is intended for households that want their Zendure home battery to respond more intelligently to live grid data, without complicated installation and without monthly subscription fees.
For users who already have or want to expand a Zendure SolarFlow system, the P1 meter is a logical addition. It gives you immediate insight into your own consumption, your feed-in, and the moments when smart charging or discharging delivers the greatest benefit.
Installation type
Plug & play via P1 port
Communication
LoRa, Bluetooth 5.0, 2.4 GHz Wi-Fi
Use case
Real-time insight into consumption and feed-in
Indoor use
Not waterproof according to the manual
Short and powerful introduction
The Zendure Smart Meter P1 is not a battery and not an inverter, but rather the smart link between your electricity meter and your Zendure energy storage system. That is exactly what makes this product so relevant: only when your system knows what is happening in the home can it truly manage energy intelligently. The P1 reader reads the data from your meter, the bridge forwards that information within the Zendure platform, and through the app you can instantly see what is happening. Especially for households with solar panels, variable energy demand, and a home battery, this is a practical upgrade that provides more control, better self-consumption, and more targeted energy management.
Overview of the main benefits
Real-time insight
See instantly how much energy you consume, how much you feed back to the grid, and when peak loads occur.
Smarter battery control
A Zendure home battery can react more intelligently to live grid data instead of relying only on fixed schedules.
Simple installation
Connect it to the P1 port of your smart meter and pair it in the app. No complex wiring required.
Local communication
The P1 reader and bridge communicate locally, which supports stable operation inside the home.
Open ecosystem
Suitable for use with the Zendure app and integrations with Home Assistant.
No subscription required
You do not pay any annual fee to use your smart meter data for intelligent energy management.
Detailed product explanation

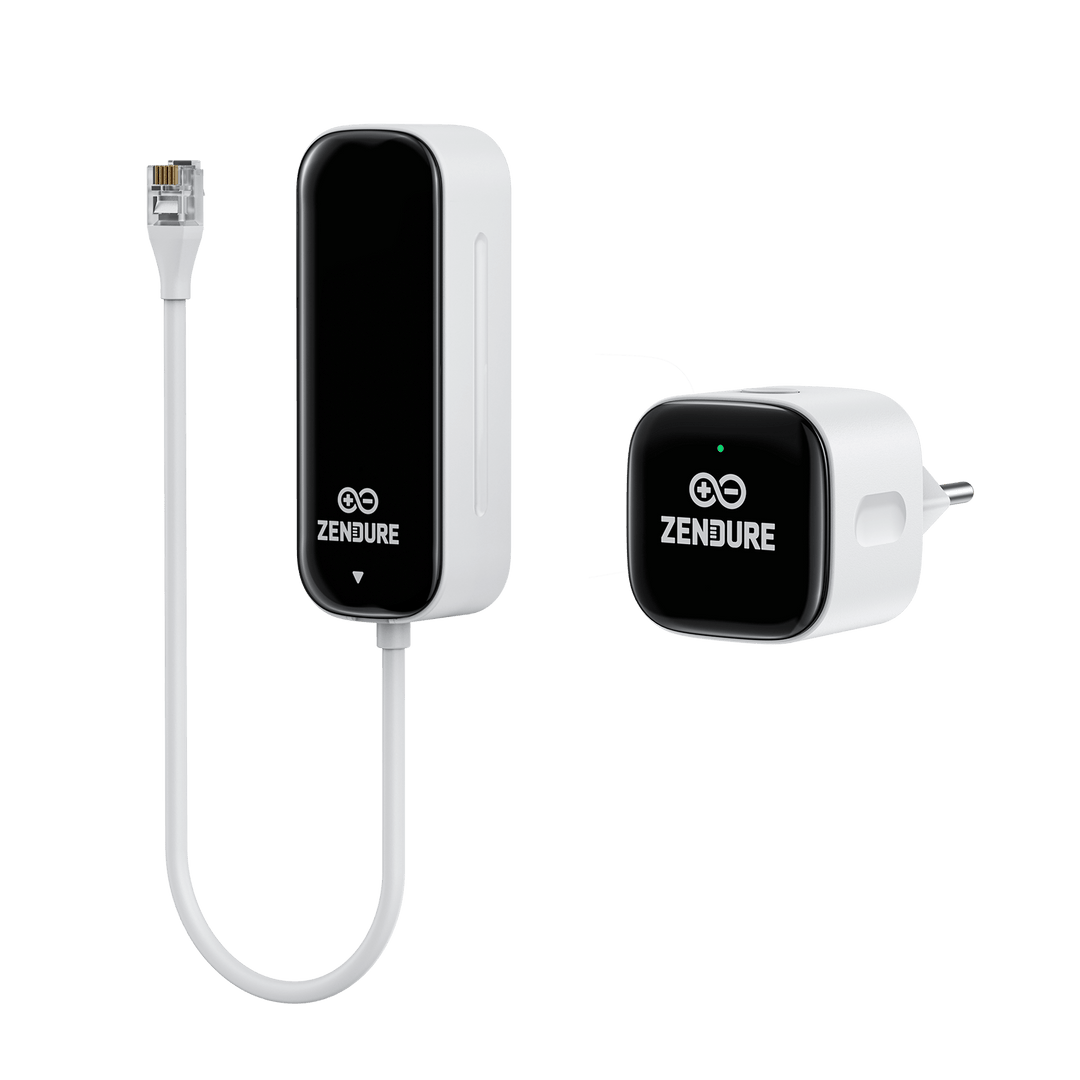

The Zendure Smart Meter P1 consists of two parts: a P1 reader that connects to your smart meter and a bridge that plugs into a wall socket. The P1 reader reads the meter data, while the bridge handles further communication with your network and the Zendure platform. This setup is practical because the reader stays compactly mounted in or near the meter cabinet, while the bridge can be positioned where Wi-Fi and signal quality are best.
For households with solar panels and a Zendure home battery, this is especially relevant. Instead of only seeing your energy use afterwards, you work with live data. That allows the system to determine more intelligently when charging, discharging, or holding energy makes the most sense. This is relevant for self-consumption, dynamic energy tariffs, and situations where you want to reduce feed-in or optimize grid import.
The P1 meter itself does not provide backup power and does not contain a battery, but it does make the underlying energy management much smarter. That makes it a valuable accessory for anyone who wants to get more out of the Zendure ecosystem without immediately moving to a larger or more complex setup.
How the product works
1. Connect to the P1 port
The reader connects via RJ12 to the P1 port of your smart meter. Many meters supply power directly through the P1 port.
2. Place the bridge

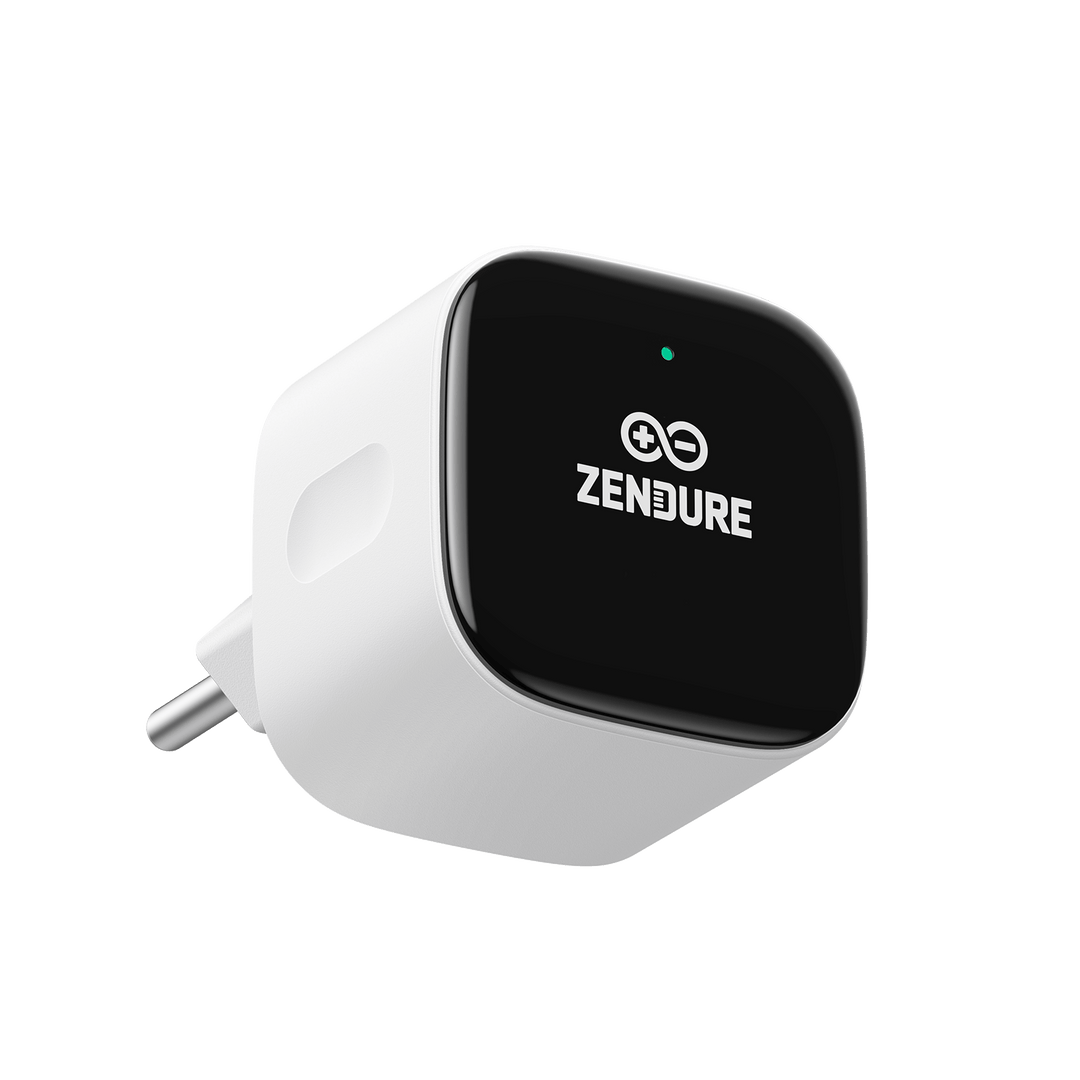

The bridge plugs into a power socket and forms the connection between the reader, your network, and the Zendure system.
3. Use the data in the app
Through the Zendure app you can see consumption and feed-in data, and the system can control the battery more intelligently based on live meter readings.
• Older Dutch smart meters with DSMR 4.0 or earlier may require additional power via USB-C.
• According to the manual, a USB-C cable and adapter are not included when external power is needed.
• The reader can be mounted on the side or top of the meter using 3M adhesive.
• For the best performance, place the bridge ideally between the meter cabinet and your wireless router.
What the Zendure P1 meter is suitable for
This product is especially interesting when you do not just want to store electricity, but also want to manage your energy usage more intelligently. That is particularly relevant for households with solar panels, users of plug-and-play home batteries, and people who want more control over feed-in, self-consumption, and peak usage moments.
• Real-time monitoring of electricity consumption and feed-in
• Smarter control of a Zendure home battery with existing solar panels
• Improving self-consumption instead of unnecessarily feeding energy back to the grid
• Gaining insight into peak usage, standby consumption, and daily energy patterns
• Working with dynamic energy tariffs and smarter charge/discharge strategies
• Integration into a broader smart home or Home Assistant environment
• Supporting smarter energy optimization as self-consumption becomes increasingly important
Who this product is suitable for
Households with Zendure SolarFlow
For users who want their Zendure home battery to respond better to actual household consumption.
Owners of existing solar panels
For homes with rooftop solar where you want to handle generation, feed-in, and later use of your own electricity more intelligently.
Users who want automation
For people who value integrations with the Zendure app or Home Assistant in a smart energy setup.
Buyers who want simplicity
For people who do not want a heavy installation but still want live energy data and smarter battery control.
Key technical features
Product
Zendure Smart Meter P1
Device name
P1 Reader + Bridge
Reader input voltage
5V DC via P1 port or USB-C
Bridge input voltage
AC 100~240V, 50/60Hz
Rated power
Reader max. 1W / Bridge max. 3W
LoRa frequency
803 MHz ~ 930 MHz
Bluetooth
Bluetooth 5.0 / 2402-2480 MHz
Wi-Fi
802.11b/g/n / 2412-2472 MHz
Max. transmit power
20.0 dBm
Operating temperature
-20°C to 50°C
Reader dimensions
37 × 98.47 × 26 mm
Bridge dimensions
42.92 × 42.92 × 71.49 mm
• Product type: accessory for energy management and smart meter data reading
• Installation type: plug & play via P1 port with separate bridge in a wall socket
• Monitoring: via the Zendure app, with official support for Home Assistant integration within the Zendure ecosystem
• Backup power function: the P1 meter itself does not provide backup power, but supports smarter control of compatible Zendure systems
• IP rating: no official IP classification found; the manual states that the device is not waterproof
• EAN code: 6976552197113
• Warranty: always check the current warranty terms at the time of purchase
Compatibility and expandability
The Zendure Smart Meter P1 is designed for standard P1 ports and serves as a smart metering and control accessory within the Zendure ecosystem. On Zendure.nl, the P1 meter is directly associated with systems such as the SolarFlow 2400 AC, SolarFlow 2400 AC+, and bundles with SolarFlow 800 Plus. That makes this product especially relevant as an addition to an existing or new Zendure home battery setup.
The manufacturer also states that the P1 meter is compatible with most smart meters on the market, but that not every meter has already been fully verified by Zendure. If your meter is not on the confirmed list, that does not automatically mean it is incompatible; it mainly means that verification may still be ongoing.
Confirmed meter brands and models
• Iskra AM550
• Kaifa MA105C E0025 / MA304C E0026 / MA304H4CNL E0060
• Landis + Gyr E350 and E360
• Sagemcom S210, T210-D, T211, S211, XT211, XS212
• ZIV E0069, E0077 and E0090
Important compatibility notes
• Older DSMR 4.0 meters or earlier may require additional USB-C power
• A non-listed meter is not automatically incompatible
• Home Assistant is relevant for users who want deeper automation
• Updating firmware in the app is recommended before use
Practical benefits in daily use
In practice, the added value of the Zendure P1 meter is all about timing. Not only knowing how much electricity you use, but especially when that happens. That is the difference between a system that simply stores energy and one that actively thinks along with your household usage.
• You detect standby consumption and unnecessary peak loads more quickly
• You can see better when your solar panels produce more than you immediately need
• You can align energy storage more accurately with your actual household profile
• With dynamic tariffs, you can manage cheap and expensive hours more intelligently
• You make your Zendure home battery more valuable without immediately upgrading to a larger system
• Even without a complex installation, you gain a concrete tool for smarter energy use
• Live meter data makes it easier to use more of your own solar generation yourself
Relevant links and expansion options
Internal links at Off Grid Supply
• Zendure SolarFlow 2400 AC plug-and-play home battery
• Home energy storage category
• Off Grid Supply homepage
Official external sources
• Official Zendure product page
• Zendure manuals and downloads
• Official Zendure Home Assistant integration
Why choose Off Grid Supply
At first glance, a P1 meter may seem like a small accessory, but in practice it often determines how intelligently a system really works. That is why Off Grid Supply does not just look at individual products, but at the full application: your smart meter, your solar panels, your energy usage, and whether a Zendure setup truly makes sense for your situation.
• Advice based on real-world application and compatibility
• Matching with suitable Zendure home batteries and expansions
• Focus on smart energy use, self-consumption, and future-ready storage
• Practical support when choosing between an accessory, a battery, or a complete set
• Strong combination of product knowledge, webshop experience, and energy system insight
Frequently asked questions about the Zendure Smart Meter P1
What does the Zendure Smart Meter P1 do exactly?
The P1 meter reads the data from your smart meter and makes it available within the Zendure ecosystem. This allows you to see real-time consumption and feed-in, and enables a compatible Zendure system to respond more intelligently to what is happening in your home.
Is this a home battery or just an accessory?
This is an accessory. The Zendure Smart Meter P1 does not store energy itself. It is a P1 reader with bridge for monitoring and smart energy control.
Does the P1 meter work with every smart meter?
Zendure states that the P1 meter works with most standard P1 ports. The manufacturer also publishes a list of confirmed models. If your meter is not listed, that does not automatically mean it is unsuitable, but additional verification is recommended.
Do I need additional power supply?
Many smart meters supply power through the P1 port. With older meters, especially DSMR 4.0 or earlier, additional USB-C power may be required. It is wise to check this in advance.
Is the Zendure P1 meter suitable for Home Assistant?
Zendure refers in its download center to an official Home Assistant integration. That makes this product especially interesting for users who want to automate their energy data further within a smart home environment.
Does the P1 meter provide backup power by itself?
No. The P1 meter does not provide backup power and does not contain an inverter or battery. It supports smarter control of a compatible Zendure system that may itself offer off-grid or backup power functionality.
What is included in the box?
The set consists of the P1 reader, the bridge, and documentation. Always check the current box contents upon delivery, especially if you are purchasing a specific bundle or promotional package.
Why is a P1 meter useful in combination with a home battery?
Because live meter data helps the system charge and discharge more intelligently. This enables you to use more of your own solar energy, manage peak loads better, and make your battery more valuable in daily use.
Ready to make your Zendure system smarter?
The Zendure Smart Meter P1 is a compact but valuable upgrade for anyone who wants to get more out of a Zendure home battery, solar panels, and real-time energy data. If you want to know whether this P1 meter is suitable for your smart meter and your desired system setup, Off Grid Supply is happy to help.
